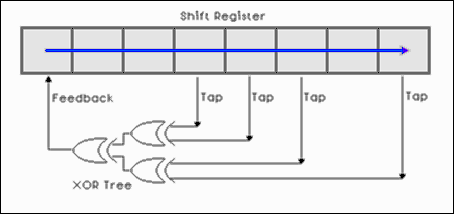

| Figure 1. Traditional PRN Code Generator approach, shown with 8 stages, and 4 taps. |
A Pseudo-Random Code Generator is a device capable of generating a large, repeating stream of pseudo-random bits suitable for mixing with other data streams, as would be done in a spread spectrum communications device. Our project, built under the auspices of an NSF grant issued to Bradley University, is a 24-stage code generator, designed using 2-micron SCNA CMOS technology. The design consists of 24 cascaded delay-XOR stages, clocked off of a single synchonous clock. It was designed using Magic and LEdit, and simulated at logical, gate, and transistor levels using custom written C programs, MATLAB, LogicWorks and Spice.
Pseudo Random Numbers or PRN's are used in a variety of applications in the digital electronics industry. A few applications include computer simulation of random events, data encryption, and spectrum spreading. As the demand for the unique properties of PRN's increases, the need for PRN generators is likewise increasing. The 24-Stage Pseudo Random Code Generator implemented in this project is suitable for use as a code sequence generator in a communications application. Before the many uses of this integrated circuit can be appreciated, an understanding of the mathematics behind code generation must be achieved.
A code generator consists of a multiple stage shift register, with taps (outputs) taken from various stages are mathematially combined and fed back into the shift register (SR). The traditional approach, as shown in Figure 1, involves simple modulo-2 addition of the taps (implemented as an exclusive-OR, XOR), and the result is wired as the input to the SR.
|
| Figure 1. Traditional PRN Code Generator approach, shown with 8 stages, and 4 taps. |
As long as there is at least one non-zero bit in the shift-register at the start of code generation, a sequence of 1's and 0's will be generated. Whether this code repeats or not, or is maximal-length, depends on which taps are used. If the generated code causes the shift-register to take on all possible state combinations for its individual stages before repeating, then the code is considered "maximal."
Each bit that is output from the code generator is called a chip. If a shift register with n stages is used, then the maximum number of chips in a non-repeating binary sequence from the generator is 2**(n-1) chips, after which the code repearts.
Maximal length codes have several interesting properties:
The first property noted above is especially
useful in communications applications. If bipolar
signalling is used, the DC component of a narrow-band
data signal is reduced by 1/C, where C equals the code
length. In an AM (Amplitude Modulation) broadcast
configuration, the DC component dictates the amount of
broadcasting power spent on broadcasting the carrier.
When longer code lengths are used to modulate the data
signal, the energy present at the carrier frequency is
significantly reduced.
Top-Level Design Overview
Our design is a modified implementation of a textbook code-generator design. Our modification, as shown in Figure 2, is straightforward. Rather than feeding back "tapped" data XOR'ed through a tree of XOR gates into a singular input, we have reversed the direction of data flow so that a single output gets fed into multiple tap points between stages of a shift register.
 |

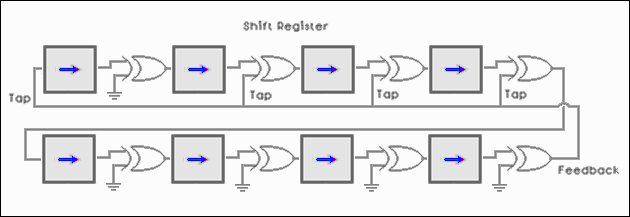

| Figure 2. Our modified Code Generator approach, using the same tap structure as Figure 1. |
The drawback of this approach over the textbook approach is that there is one XOR gate for every D Flip-Flop in the shift register, regardless of the number of taps. The chief benefit, however, is that the wiring structure changes minimally as tap count or tap structure changes. Additionally, with our method there is a maximum of one gate delay between when the data is available on the feedback path, versus two or more gate delays in the "XOR Tree" in the textbook method. Given that we are attempting to design a rather generic and universal code generating device, we felt that these benefits mitigated our design decision.
In order to verify our design idea, we worked
through two independant proof-of-concept simulations.
First, we used a C-program (Appendix A, Listing 1) to
implement our modified algorithm. We compared our
output for several different tap structures to output
generated by the textbook algorithm. Next, we built a
LogicWorks simulation of a small, 3-stage code generator
(Appendix B, Simulation 1) to further prove the
workability of our design.
Lower-level Gate Design
With two separate proofs-of-concept verifying our initial design concept, we decided to move forward with the lower-level gate design. At this point, our project consisted of two primary components: XOR gates, and D Flip-Flops. Since XOR gates were already reduced a single-gate level, we concentrated on the design of our D Flip-Flops.
For the basic design of our D Flip-Flops, we used the textbook approach of building a master-slave flip-flop from NAND gates. The separate master and slave sections are built from a clocked SR Flip-Flop, as shown in Figure 3a. Figure 3b illustrates how these stages are combined into a complete master-slave flip-flop. Included in the resulting master-slave flip-flop, then, are inputs for Clk, /Clk, D, /D, /Set, and /Reset as well as the complementary outputs Q and /Q. So long as D and /D are the input data and inverted input data, the device acts as a D Flip-Flop.
Once we had designed this, we also simulated it
in LogicWorks. Because our design did not require a
/Reset input, we omitted it from this simulation and from
our final design. (Only the /Set input was kept, as
resetting all of the D Flip-Flops to zero would actually
cause the code generator to cease generating codes. A
necessary condition for code generation is the presence of
at least one non-zero bit within the D Flip-Flop stages.)
As shown in Appendix B, Simulation 2, our LogicWorks
simulation verified the D Flip-Flop characteristic of our
circuit.
Transistor-level Gate Design
Now that the gate-level design of our devices
was complete, the transistor level design of our chip
began. We considered many different layouts for each
transistor-level cell, weighing various factors such as
size, speed, and workability. After many levels of
redesign, we eventually constructed the gates shown below.
CMOS Inverter gate
The simplest of all the gates, the inverter, is pictured in Figure 4a. As its Spice simulation results show, Appendix B, simulations 3a & b, the device is fairly quick, having a switching time of approximately 0.2ns w/out load. With like-sized load, this delay changes little, expanding out to barely 0.4ns. As one can see, this is a very fast, simple device.
(For sake of comparison with my other gates, I
am choosing this device as the definition for 1 CMOS
load, and as the standard unit for CMOS drive capability.
Table 1 below tabulates the simulation results for each of
the cells designed. Input loading and output driving are
determined by the ratio of the time-constants of the circuit
being evaluated to the time-constants of the simple
inverter. A 10k-ohm resistor in series with the input, and
a 1pF capacitor in parallel with the output were used to
make these measurements.)
CMOS XOR gate
When implementing more complicated multiple-input CMOS gates, one first must calculate the inverse and complement-of-inverse forms of the logic function being implemented. Then, the P-transistors are wired from VDD to output as dictated by the complement-of- inverse function, and the N-transistors are wired from GND to output as dictated by the inverse function.
With this in mind, the XOR gate was designed next. This gate was designed in two parts due to its complex nature. Before we could even begin considering its transistor-level implementation, we needed to decompose the XOR function into AND and OR gates using a set of sum-of-products expressions as follows:
Upon inspection of these equations, it becomes
apparent that all four minterms (a product of inputs to a
logic function, one or more of which may be inverted) are
required to generate this function. This implies that A, B,
/A, and /B all need to be present to generate A XOR B.
For this reason, the XOR was split into the XOR body
and the inverter-pair, in Figures 4b, and 4c respectively.
The inverter pair, being built from the
previously designed inverter circuit, did not require
additional simulation. No changes to its various circuit
parameters were made. For the complete XOR gate, we
performed a separate set of simulations, as detailed in
Appendix B, simulations 4a, b, and c.
Master-Slave Flip-Flop and
Set-Reset Flip-Flop
Finally came the design of the master-slave flip-flop. This design was approached in a modular manner, such that the clocked SR Flip-Flop was designed first, and then merely duplicated twice to create the master-slave device. For that reason, only the SR's design is detailed.
The basic unit of the SR Flip-Flop design, as mentioned previously, was the NAND gate. Using the above procedure, we generate the following functions:
It is worth noting that the two clock inputs are labeled 1 and 2. This notation would imply the two-phase non-overlapping clock structure utilized by Mead & Conway primarily for NMOS designs. For our design, this is actually not the case. 1 and 2 are roughly inverse of each other, but labeled as separate phases since they are distributed through separate distribution networks as is described later.
Once the SRFF was designed, we simulated it at
a fairly high (50MHz) clock rate, sending through an
alternating data stream. Appendix B, Simulation 6(c)
shows these results. Simulations 7 and 8 show the results
when the SRFF was connected as a full Master-Slave flip
flop w/XOR gate, and with four such stages cascaded,
respectively. As is apparent from the simulation results,
the gate operation was satisfactory even at speeds of
25MHz and 50MHz. This is with a "perfect" clock,
however.
Driver Circuits
Our next concern was driving circuits. By far, the simplest driving circuits to implement are merely modified inverters. For our driving circuits, we opted to gang up multiple inverters into driving blocks, while simultaneously extending the W/L ratio of the transistors of the inverter. After several informal design tests, we settled on three separate driver types, Driver2x (DRV_2), Driver4x (DRV_4), and Driver6x (DRV_6).
Driver2x is just the XOR_B stage, with the inputs and outputs connected together to create a composite stage. Driver4x is similarly constructed of two inverters, with its transistors stretched to twice the W/L ratio for both N and P diffusion. Driver 6x is constructed of three inverters, also stretched to the same W/L as Driver4x. The intention is to use these in a tiered arrangement to minimize total gate delay. Appendix B, Simulations 9 and 10 highlight the performance of these devices separately.
| Table 1. Summary of cell parameters | |||||
| Cell Name | Input Load | Output Drive | Gate Delay | ||
| No load | 1 CMOS Load | ||||
| Inverter | 1.0* | 1.0* | 0.3ns | 0.8n | |
| XOR | 2.0 | 0.638 | 0.9ns | 1.2ns | |
| SRFF | D input | 1.1 | 0.205 | 2.4ns | 3.2ns |
| Clk input | 2.2 | ||||
| MSFF** | ---- | ---- | 4.7ns | Not Tested | |
| DRV2 | 2.44 | 1.85 | 0.3ns | 0.35ns | |
| DRV4 | 4.44 | 2.84 | 0.3ns | 0.3ns | |
| DRV6 | 6.27 | 4.81 | 0.3ns | 0.3ns | |
| *By definition | |||||
| **Input characteristic is same as SRFF | |||||
| Driving capability is calculated as the ratio between output time constants after subtracting the unloaded single-inverter gate delay of 0.3ns from each time constant. | |||||
Chip Hierarchy Design
With all of the low level gates designed and
simulated in LogicWorks and Spice, we moved on to
putting the low-level CMOS gates together into a
hierarchial chip design. The Magic VLSI Layout Editor
supports a hierarchial design paradigm. What this means,
essentially, is that it allows us to build our design up from
smaller pieces into larger pieces, and further build still
larger sections from these larger pieces, and so on, until
the entire chip is complete. To put this into perspective,
Figure 5 gives an overview of the chip hierarchy.
The DX Flip-Flop Stage
The smallest homogeneous unit in our ideal code generator, referring back to our top-level design, is the combination of a D Flip-Flop and XOR gate. So, for the lowest level of our main chip hierarchy, we built what we refer to as the "DX Flip-Flop Stage." This stage consists basically of a D Flip-Flop followed by an XOR gate.
Because the XOR gate is actually composed of
two halves, XOR_A and XOR_B, we will actually break
this up into three pieces, so that we have the trailing half
of the previous XOR, followed by the Master-Slave Flip-Flop (acting as a D Flip-Flop), followed lastly by the front
half of the next XOR. This allows us to daisy-chain gates
readily, with only half of the first half of an XOR being
unutilized at the beginning of the chain. (Recall that the
second half of the XOR gate, XOR_B, is actually two inverters, and that
for the Master-Slave Flip-Flop to act as a D Flip-Flop, the data input
must be inverted. So, one of the two inverters does get used, and the
other just has its input tied to ground to prevent it from oscillating
or idling in the active state.) Figure 6a illustrates this stage at the
cell level.
The 2DX Stage
The next step in our hierarchy was to place two
of the DX stages cross-wise with each other. Our of our
goals in this chip layout is to have as dense of a gate
structure as possible. To aid this, we opted for an S-shaped physical datapath for our circuit. So, we placed
one DX stage facing to the left, and a second facing to the
right, with the output of the first connected around the left
end to the input of the second. Further, the four set inputs
were wired together into one composite input, and a
DRV_2 stage was inserted to drive them. Figure 6b
illustrates this stage at the cell level.
The 8DX-Bus Stage
With 24-stages slated for our completed design, we decided to break our design into three sections of 8 stages. So, the next logical unit for building up our design was the 8DX stage. This stage is merely four 2DX stages tiled together in a four-cell array, with connections added on the right-hand side.
Next, driver circuits, consisting of two pairs of
Driver4x circuits, were added to drive both sets of clock
signals for all eight DX stages of this composite stage.
An additional Driver2x pair was added to the set input as
well. Further, a multiconnector bus was drawn in to
facilitate the daisy-chaining of these stages in a linear
fashion, to simplify the interconnection of these stages
into a 24-stage design. Figure 6c illustrates this
configuration at the cell level.
Clocking Structure
It was during the design of this stage that we decided to consider the clocking structure of the circuit. Given that we are planning on driving 24 stages from the same clock input, it became readily apparent that something would need to be done regarding clock distribution.
Each MSFF stage has two clock inputs, each of which looks like approximately 2.2 CMOS loads. So, for each clock line, we would have 52.8 CMOS loads being driven. We opted for a cascaded inverter setup for distributing the clocks. To minimize switching transients along the power supply rails, we decided to distribute the clocks, wired in a tiered fashion. Figure 7 details the finished clocking design.
Our intention in building the clock driving tier was to have the ratio of input loads between consecutive tiers be relatively close to e, as it can be shown mathematically that a uniform ratio of e between stages of cascaded inverters minimizes overall delay. Our implementation has actual ratios ranging from 2.7 to 4.4.
We starting building our clocking structure from driven end back towards the clock input. Each 8-stage section represents 17.6 CMOS loads on each of 1 and 2. Our solution was to place 2 Driver4x stages at the top and bottom of each 8DX block, tying two such drivers to each stage. Further, we provided leads for interconnection of 1 and 2 lines between different 8DX stages, to equalize minor variances between clock drivers. This arrangement provided an 5.68:17.6 ratio, or 1:3.09 ratio of input loads for this tier of the clocking structure, and permitted ready compensation for minor device variation.
Next, we considered the intermediate tier of our clocking structure. At this tier, we placed two Driver6x stages for each phase, with both Driver6x stages tied together at the outputs driving all 6 Driver4x inputs within each phase. Again, all connections within the tier were tied together to limit timing variances between sections. This arrangment provided a 9.68:26.64, or 1:2.77, ratio of input loads.
Finally, the topmost tier of the structure was
considered. For 2, there was only a connection directly
to the clock input pin on the pad frame. For 1, we
added a single Driver4x stage, to provide phase inversion
with respect to 2. At this stage, we had a 2.84:12.54, or
1:4.4 ratio of driver input loads.
Overall chip
With all of these pieces designed and built, we then proceeded to put these together into a complete chip design. First, we daisy chained the three 8DX-Bus stages together to form the 24-Stage body. Then we attached the upper tiers of the clocking structure outside of these stages. Next, we wired the Vdd and GND busses to everything. Finally, we wired all of the inputs and outputs to their corresponding pins on the chip pad frame.
In the completed design, we labelled the D input of the first stage as "T0", and then labelled subsequent XOR inputs as "T1" through "T24." T24 is not a proper tap, per se, as there is only an XOR gate between T24 and the output of the circuit, Q. T24 is useful for "perturbing" the output/feedback data stream for the purpose of aligning codes.
Once all of the inputs and outputs were assigned
and wired, we had a few pins left over. So, we decided to
place a couple extra gates in our chip design. We placed
in our design a standalone XOR gate and a standalone
MS Flip-Flop (wired as a D Flip-Flop.)
Final Simulation of Design
Now that our design was practically complete, we were faced with the task of simulating the completed design to check for errors. This was not a simple task whatsoever. For this, we used Spice once again, running on a dedicated Linux workstation with 52MB of RAM and 384MB of swapspace.
To test our design, we used three basic test suites. The sheer magnitude of our design limited the scope of the tests that could be performed within our limited time frame. The tests can be summarized as follows:
Each of these tests was performed without the pad frame
present. Very limited informal tests were done while the
chip was in the frame as well. Although the partial
results received were promising, none of the simulations
completed due to lack of computer resources. (The
simulations w/ frame demanded too much real RAM.)
Appendix B, Simulation 12 shows the results of the
above three tests without the frame.
Testing Procedures for Fabricated Chip
To verify the operation of the fabricated chip, we recommend the following procedures:
/* FILE: codegen.c */
/* Code Generator proof-of-concept simulation */
/*
This program simulates the xor-between-DFF style code generator
by implementing a shift register in a 32-bit integer variable. Data
shifts through the register from right to left. When the CODEBIT
is 1, all of the taps, specified by the MAGICNUM, are toggled.
To verify the codes, the program initializes the register to
contain 0x00000001, and generates codes until one of the following
conditions is met:
(a) the code register goes to zero --> non persisting code
(b) the code register goes to a previous value !=1 -> non-maximal code
(c) the code register goes back to 0x00000001 -> possibly maximal code
While it is executing a given tap sequence, it will output the set of
random bits the code generates on the feedback path. It will additionally
state what condition caused it to exit, and the number of states it
visited before revisiting a state.
There is a special case in the code for a 31-stage code generation.
Because of limitations in memory storage, it becomes difficult to
track previously-visited states with register sizes much above 24-bits.
So, instead, we check only for the register to come back to the all-zero,
starting, or 1048576th state. Also, due to the sheer number of codes
generated, none of the output bits are displayed. Further, only limited
information about the closeness to maximality of a code is available,
unless the code *is* maximal, in which case, it will correctly report
that it is.
(This code doesn't actually directly report if a code is maximal.
Rather, it reports number of states until a code repeats. A code is
maximal if it has (2^n - 1) states, where n is the register size. In
the case of a maximal code in the 31-stage configuration, since each
state is tested for equality against the starting state, if the starting
state is only reached after (2^31 - 1) steps, then the code is obviously
maximal, which it will correctly find.)
*/
#include <stdio.h>
/* Pick one of THREE_STAGE, NINE_STAGE, THIRTY_ONE */
#define THREE_STAGE
#undef NINE_STAGE
#undef THIRTY_ONE
#if defined(NINE_STAGE)
#define MAGICNUM 0x021 /* 000100001 */
#define CODEBIT 0x100 /* 100000000 */
#define CODEMASK 0x1FF
#else
#if defined(THIRTY_ONE)
#define MAGICNUM 0x80000047L
#define CODEBIT 0x40000000L
#define CODEMASK 0x7FFFFFFFL
#else
#define MAGICNUM 0x3 /* 011 */
#define CODEBIT 0x4 /* 100 */
#define CODEMASK 0x7 /* 111 */
#endif
#endif
inline unsigned int nextbit (unsigned int *code)
{
unsigned int c1;
c1=(*code)&CODEBIT;
*code=(*code<<1)&CODEMASK;
if (c1) *code ^= MAGICNUM;
return c1!=0;
}
#define NEXTBIT(c) \
((c)&CODEBIT?(c=(((c)<<1)^MAGICNUM)&CODEMASK),1:((c=(c<<1)&CODEMASK),0))
int visit[65536];
main()
{
register unsigned int i,c,j,cc;
for (i=0;i<65536;i++) visit[i]=0;
printf("MAGIC NUMBER: %.8x\n",MAGICNUM);
printf("CODE BIT: %.8x\n",CODEBIT);
printf("CODE MASK: %.8x\n",CODEMASK);
j=c=1;
for (i=0;i<~(0L);i++)
{
/*nextbit(&c);*/
NEXTBIT(c);
cc=c&(CODEMASK&(~CODEBIT));
if (c==1) break;
#ifndef THIRTY_ONE
if (visit[c>>4]&(1<<(c&0xf)))
{
printf("\nerror--revisiting point %3x at stage %d\n",c,i+1);
exit(1);
}
/*visit[c>>4]|=(1<<(c&0xf));*/
printf("%1x",!!(c&CODEBIT));
if (i%80==79) putchar('\n');
#else
if (j==c)
{
printf("\nerror--revisiting point %3x at stage %d\n",c,i+1);
exit(1);
}
if (!(i%1048576))
{
j=j>1?j:c;
}
#endif
if (c==0)
{
printf("\nerror--code went to zero in stage %d!\n",i+1);
exit(1);
}
}
#ifndef THIRTY_ONE
printf("%1x\n",!!(c&CODEBIT));
#endif
printf("\n%10d stages repeated code: %.8x\n",i+1,c);
return 0;
}
/* FILE: base.c */
/* Basic node-name extractor */
/*
This C program runs in conjunction with build_nodelist in order to
grab labels and their node numbers into a file that can be sourced
by a Bourne shell. Once such a file is sourced, it's possible to
use Bourne shell's string-substitution feature to append a boilerplate
simulation to a lengthy input Spice file.
*/
#include <stdio.h>
#include <string.h>
#include <ctype.h>
char *base(char *buf)
{
char *s1,*s2;
s1=s2=buf;
while (s1 && *s1) { if (*s1=='/') s2=s1+1; s1++; };
return s2;
}
main()
{
char buf[256];
char *s,*ss;
int num,i;
while (fgets(buf,255,stdin))
{
i=sscanf(buf,"%d",&num);
if (i!=1) continue;
if (strstr("FLOATING",buf)) continue;
s=buf;
while (s && *s) { if (*s++=='=') break; }
while (s && *s) { if (!isspace(*s)) break; s++; }
if (s) s=base(s);
if (!s || !*s || !isalpha(*s)) continue;
ss=s;
while (ss && *ss) {
if (*ss=='!' || *ss=='~') *ss='_';
if (!(isalnum(*ss) || '_'==*ss))
{
*ss=0;
break;
}
ss++;
}
printf("%s=%d\n",s,num);
}
return 0;
}
/* FILE: rmonte.c */
/* Resistance Monte-Carlo */
/*
This program is a simple, rudimentary resistance shifter, meant
to reduce the effects of perfect symmetry within the many bistable
devices in my design. By shifting resistances higher and lower
by small amounts within a small tolerance band, the accuracy of the
simulation is not compromised, but the ability for spice to converge
on a DC-bias solution is enhanced.
Note that this isn't a cure-all as there still are many times when
Spice will throw up its hands with a singular matrix. The most
effective course of action that I've devised in that situation is to
add .nodeset cards for the offending nodes to manually shift those
nodes during the initial DC-bias calculation. Since these node
settings become invalid at the first time point, they don't otherwise
affect the simulation as "valid" states get assigned to each bistable
device.
*/
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <ctype.h>
#include <math.h>
/* tolerance band size, in decimal */
#define PERCENT (0.05)
double mod_resist(double d)
{
static double blah=0.0;
int i;
blah=1000.0*sin(blah+1.1);
i=blah;
blah-=(double)i;
if (blah<0) blah=-blah;
if (blah>1) blah=1/blah;
return (1.000-(PERCENT/2.0)+(PERCENT*blah))*d;
}
main()
{
char buf[256];
double resist;
char *s1,*s2;
int i;
while (fgets(buf,255,stdin))
{
if (buf[0]=='R') /* resistor */
{
i=0;
s1=buf;
while (s1 && *s1 && i<3)
{
s1++;
i+=isspace(s1[-1])&&(!isspace(s1[0]));
}
if (s1 && *s1 && i==3) resist=atof(s1);
else { printf("error!\n"); exit(1); }
*s1=0;
s2=s1+1;
while (s2 && *s2)
{
if (!(isdigit(*s2) || strchr(".+-Ee",*s2)))
break;
s2++;
}
printf("%s%f%s",buf,mod_resist(resist),s2);
} else
fputs(buf,stdout);
}
return 0;
}
#!/bin/sh
#
# FILE: build_nodelist
#
# This program builds a boilerplate simulation and appends it on the
# complete circuit description for the completed project. The resulting
# spice source can be further manually edited for performing whatever
# simulations that may be required.
PROJECT=Code_Generator
grep "NODE:" $PROJECT.spice | grep -v \#$ | sed -e "s/ \([0-9][0-9][0-9]\) /
\1 /g" | sed -e "s/ \([0-9]\) =/ \1 =/g" | sort +4 -b -d | cut -d: -f2 >
$PROJECT.nodes
base < $PROJECT.nodes > $PROJECT.var
. $PROJECT.var
# Uncomment "rmonte", and comment out the "cp" to use the monte-carlo
# resistance shifter preprocessor.
#
#rmonte < $PROJECT.spice >$PROJECT.monte
cp $PROJECT.spice $PROJECT.monte
cat header scna.spice $PROJECT.monte - << EOF | expand -4 > ${PROJECT}_a.spice
* Customized driving circuit for spice simulation of 24dx circuit in frame
* Power Supply
** NODE: 0 = GND!
** NODE: 1 = Vdd!
Vdd $Vdd_ $GND_ 5v
* Clock
** NODE: $pin_36 = phi_0 input
* 100ns clock == 10Mhz
Vphi0 $pin_36 0 DC 0v PULSE(0v 5v 0ns 2ns 2ns 48ns 100ns)
* 50ns clock == 20Mhz
*Vphi0 $pin_36 0 DC 0v PULSE(0v 5v 0ns 2ns 2ns 23ns 50ns)
* 40ns clock == 25Mhz
*Vphi0 $pin_36 0 DC 0v PULSE(0v 5v 0ns 2ns 2ns 18ns 40ns)
* 20ns clock == 50Mhz
*Vphi0 $pin_36 0 DC 0v PULSE(0v 5v 0ns 2ns 2ns 8ns 20ns)
* Primary output
** NODE: $pin_01 = Qout
* Inputs
** NODE: $pin_20 = T0
*VT0 $pin_20 0 5v PULSE(5v 0v 100ns 2ns 2ns 1000s 1000s)
RT0 $pin_20 0 0.1
*RT0 $pin_20 $pin_01 0.01u
** NODE: $pin_21 = T1
RT1 $pin_21 0 0.1
*RT1 $pin_21 $pin_01 0.01u
** NODE: $pin_29 = T2
RT2 $pin_29 0 0.1
*RT2 $pin_29 $pin_01 0.01u
** NODE: $pin_22 = T3
RT3 $pin_22 0 0.1
*RT3 $pin_22 $pin_01 0.01u
** NODE: $pin_28 = T4
RT4 $pin_28 0 0.1
*RT4 $pin_28 $pin_01 0.01u
** NODE: $pin_23 = T5
RT5 $pin_23 0 0.1
*RT5 $pin_23 $pin_01 0.01u
** NODE: $pin_27 = T6
RT6 $pin_27 0 0.1
*RT6 $pin_27 $pin_01 0.01u
** NODE: $pin_24 = T7
RT7 $pin_24 0 0.1
*RT7 $pin_24 $pin_01 0.01u
** NODE: $pin_26 = T8
RT8 $pin_26 0 0.1
*RT8 $pin_26 $pin_01 0.01u
** NODE: $pin_11 = T9
RT9 $pin_11 0 0.1
*RT9 $pin_11 $pin_01 0.01u
** NODE: $pin_34 = T10
RT10 $pin_34 0 0.1
*RT10 $pin_34 $pin_01 0.01u
** NODE: $pin_12 = T11
RT11 $pin_12 0 0.1
*RT11 $pin_12 $pin_01 0.01u
** NODE: $pin_33 = T12
RT12 $pin_33 0 0.1
*RT12 $pin_33 $pin_01 0.01u
** NODE: $pin_13 = T13
RT13 $pin_13 0 0.1
*RT13 $pin_13 $pin_01 0.01u
** NODE: $pin_32 = T14
RT14 $pin_32 0 0.1
*RT14 $pin_32 $pin_01 0.01u
** NODE: $pin_14 = T15
RT15 $pin_14 0 0.1
*RT15 $pin_14 $pin_01 0.01u
** NODE: $pin_31 = T16
RT16 $pin_31 0 0.1
*RT16 $pin_31 $pin_01 0.01u
** NODE: $pin_06 = T17
RT17 $pin_06 0 0.1
*RT17 $pin_06 $pin_01 0.01u
** NODE: $pin_40 = T18
RT18 $pin_40 0 0.1
*RT18 $pin_40 $pin_01 0.01u
** NODE: $pin_07 = T19
RT19 $pin_07 0 0.1
*RT19 $pin_07 $pin_01 0.01u
** NODE: $pin_39 = T20
RT20 $pin_39 0 0.1
*RT20 $pin_39 $pin_01 0.01u
** NODE: $pin_08 = T21
RT21 $pin_08 0 0.1
*RT21 $pin_08 $pin_01 0.01u
** NODE: $pin_38 = T22
RT22 $pin_38 0 0.1
*RT22 $pin_38 $pin_01 0.01u
** NODE: $pin_09 = T23
RT23 $pin_09 0 0.1
*RT23 $pin_09 $pin_01 0.01u
** NODE: $pin_37 = T24
RT24 $pin_37 0 0.1
*RT24 $pin_37 $pin_01 0.01u
** NODE: $pin_04 = Set
VSet $pin_04 0 0v PULSE(0v 5v 10ns 2ns 2ns 100s 1000s)
* Analysis
.option ITL1=32 ITL4=5 ABSTOL=1u RELTOL=0.005 VNTOL=5u
.tran 10ns 2500ns
.nodeset v($Q0)=5 v($Q1)=5 v($Q2)=5 v($Q3)=5
+ v($Q4)=5 v($Q5)=5 v($Q6)=5 v($Q7)=5
+ v($Q8)=5 v($Q9)=5 v($Q10)=5 v($Q11)=5
+ v($Q12)=5 v($Q13)=5 v($Q14)=5 v($Q15)=5
+ v($Q16)=5 v($Q17)=5 v($Q18)=5 v($Q19)=5
+ v($Q20)=5 v($Q21)=5 v($Q22)=5 v($Q23)=5
+ v($Set_)=5
.control
run
plot v($Phi_1_) v($Phi_2_) v($pin_36) 5+v($Q0) 10+v($Q1) 15+v($Q2) 20+v($Q3) 25+v($Q4) 30+v($Q5) 35+v($Q6) 40+v($Q7)
plot v($Phi_1_) v($Phi_2_) v($pin_36) 5+v($Q8) 10+v($Q9) 15+v($Q10) 20+v($Q11) 25+v($Q12) 30+v($Q13) 35+v($Q14) 40+v($Q15)
plot v($Phi_1_) v($Phi_2_) v($pin_36) 5+v($Q16) 10+v($Q17) 15+v($Q18) 20+v($Q19) 25+v($Q20) 30+v($Q21) 35+v($Q22) 40+v($Q23)
rusage all
.endc
EOF
